> > > 5W 22R Resistor

5W 22R Resistor

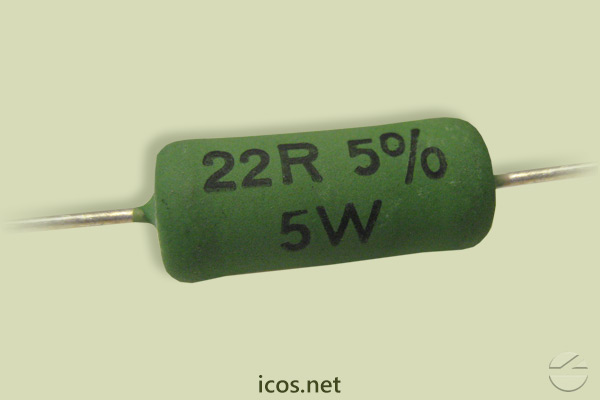

Resistor 22R 5W for electrical installation of Eicos Switches

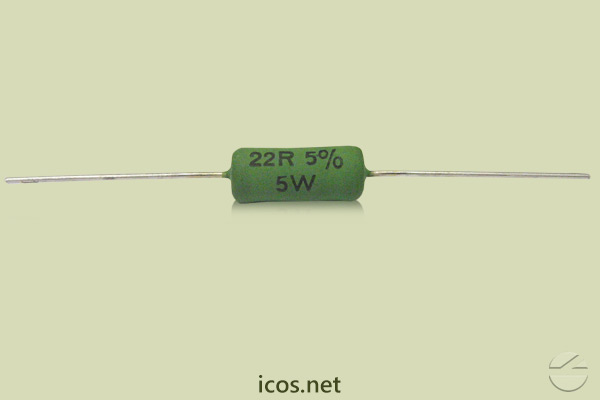

Resistor 22R 5W for electrical installation of Eicos Switches

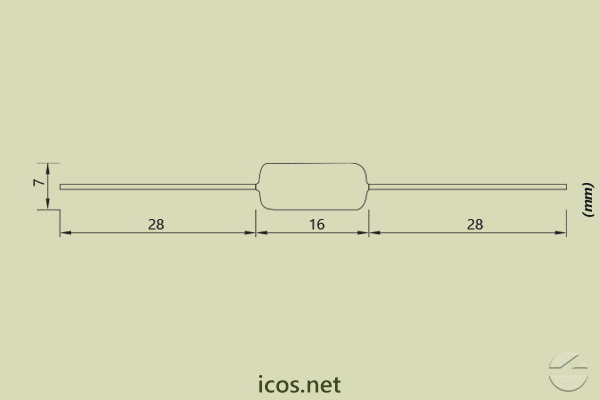

Dimensions of Resistor 22R 5W for electrical installation of Eicos Switches

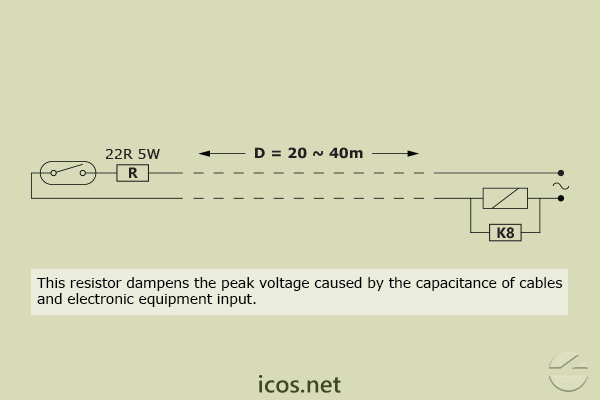

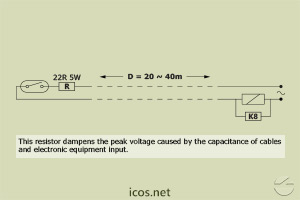

Electrical scheme for Eicos sensor installed between 20 to 40 meters
Discontinued product

Contact our sales department to check the availability of the product in stock.

Phone: +55 15 3032 9190

E-mail: sensorx@xeicosx.xus

Overview

Technical Specifications

For the electrical connection of Eicos Level Switches and Flow Switches.

  • Resistance: 22R
  • Tolerance: 5%
  • Power: 5W
  • Weight: 2g
  •
  • Application: Connecting Eicos Level Switch or Flow Switch for Long Distance
