> > > M12 Male 90° Connector

M12 Male 90° Connector for electrical connection with M12 female connector

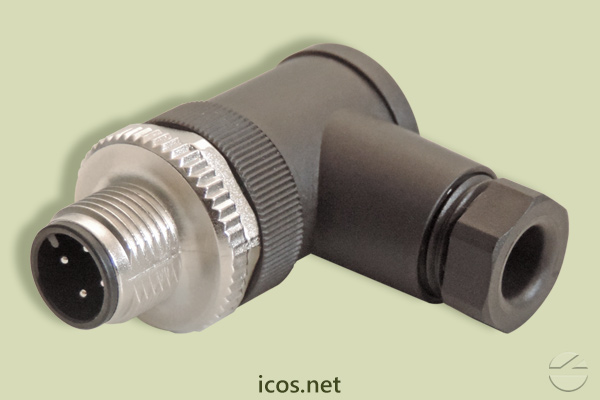

90° M12 male connector of 4 contacts

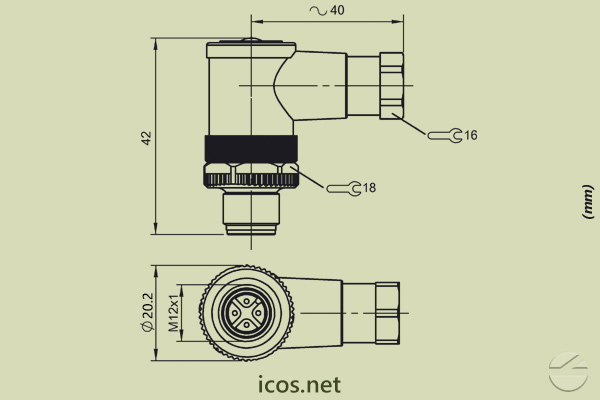

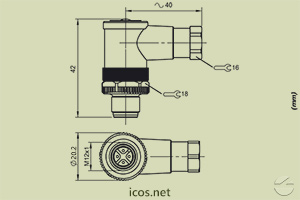

Dimensions of the 90° M12 male connector

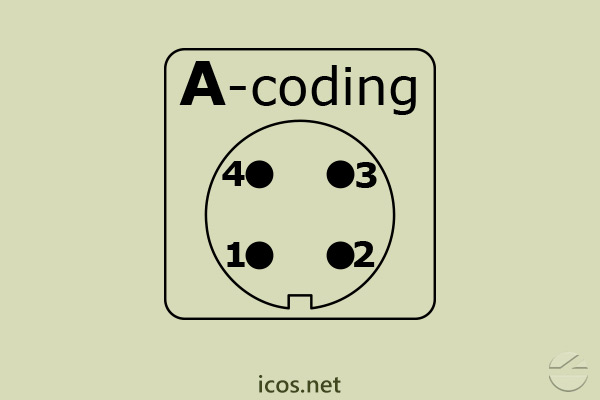

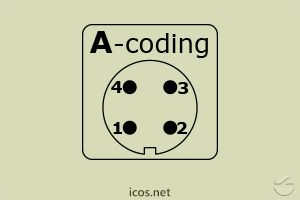

"A-Coding" of the 90° M12 male connector
Discontinued product

Contact our sales department to check the availability of the product in stock.

Phone: +55 15 3032 9190

E-mail: sensorx@xeicosx.xus

Overview

Technical Specifications

Connect your cable on M12 male Connector for application with M12 female Connection.

  • Material: PA
  • Connectors: 04 pins (male)
  • Mounting: 90° angle
  • Cable diameter: 4 - 6mm (cable not included)
  • Voltage: 250V
  • Operating temperature range: -25°C to 85°C
  • Enclosure rating: IP67
  • Weight: 25g
